1 INCH STAINLESS STEEL 316 clamped

AOD 25 PF SS

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow

SPECIFICATIONS

Suction & Discharge Size
1" X 1"
Standard Porting Location
centre
Connection Types
BSP / NPT
Air Inlet & Air Exhaust Size:
6mm( 1/4 ") X 13mm 1/2"
Maximum Flow Rate
167lpm(44gpm)
Maximum Air Supply Pressure
100 psi (6.9 bar)
Displacement Per Stroke
0.3l (0.08 gal)
Maximum Particle Size
3.2mm(1/8")
Suction Dry:
5.2m(17.0')
Suction Wet:
9.0m(29.5')

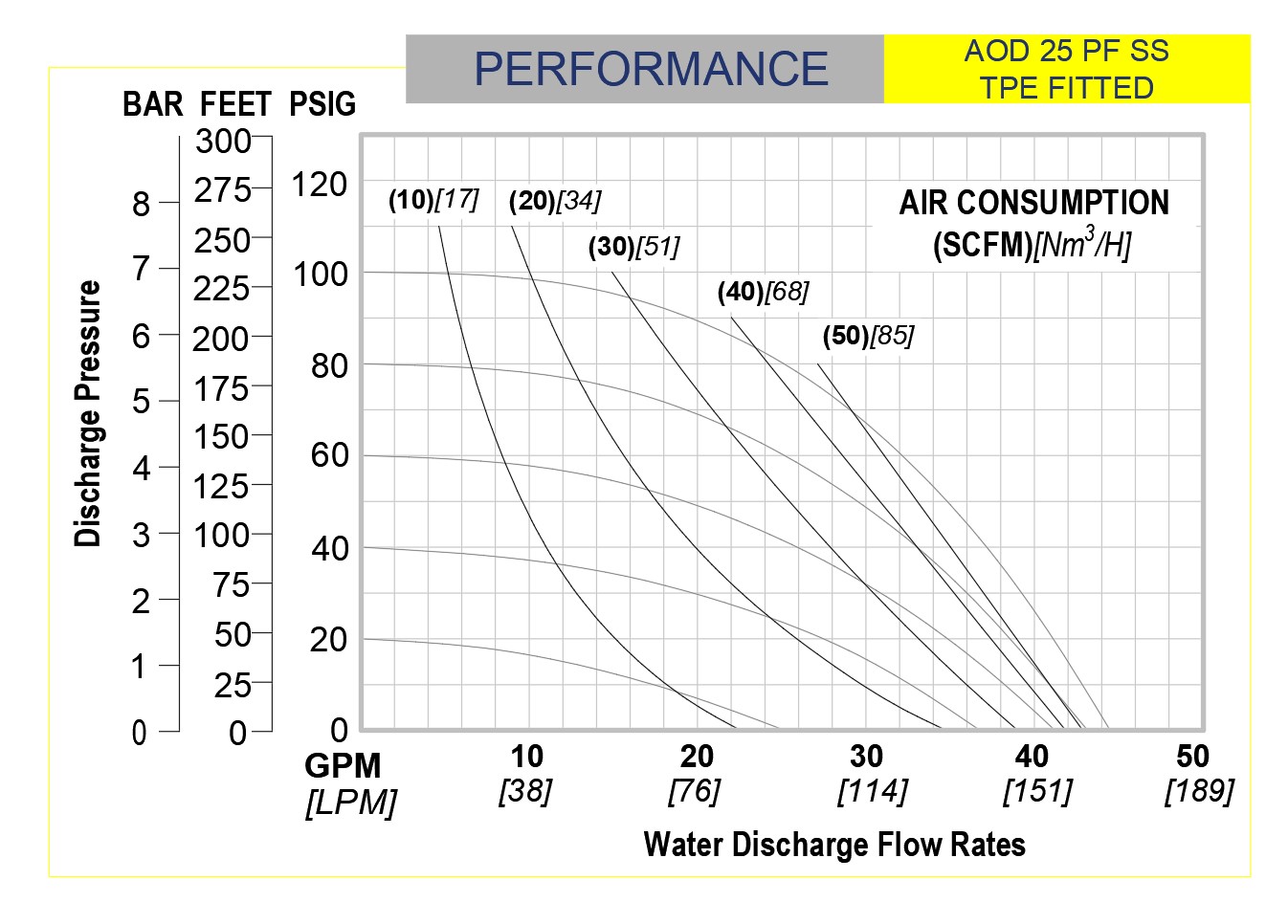

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Stainless Steel SS316
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
440mm(17.32")
Maximum Width
310mm(12.20")
Maximum Depth
370mm(14.57")
Weight: Stainless Steel 316
18 Kg

DIMENSIONS
