11/2 INCH polypropylene CLAMPED

AOD 40 NSV PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size
1-1/2" X 1-1/2"
Standard Porting Location
Centre
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
9.5mm(3/8") X 13mm (1/2")
Maximum Flow Rate
379lpm(100gpm)
Maximum Air Supply Pressure
100 psi (6.9 bar)
Displacement Per Stroke
1.0l (0.26 gal)
Maximum Particle Size
4.8mm(3/16")
Suction Dry:
5.9m(19.5')
Suction wet:
8.3m(27.2')

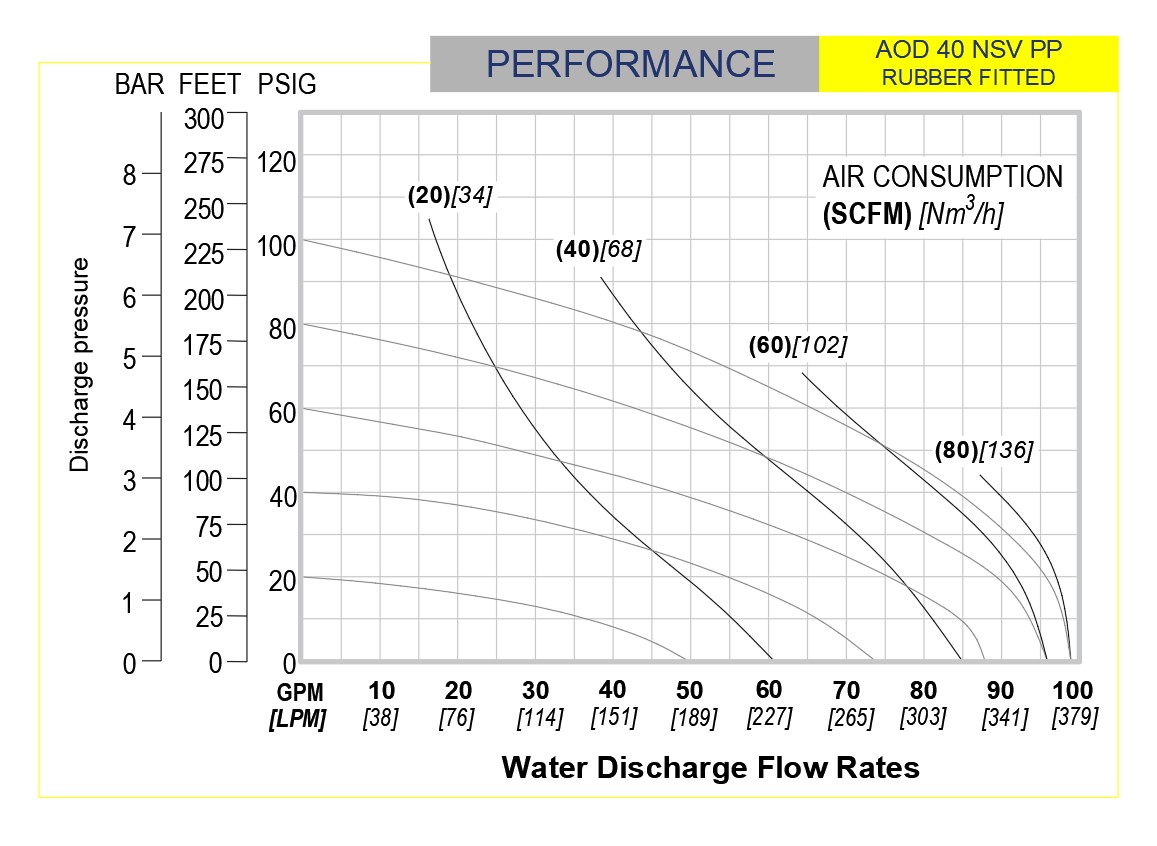

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Glass Filled Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
580mm(22.83")
Maximum Width
400mm(15.75")
Maximum Depth
450mm(17.72")
Weight: Polypropylene
21.5 Kg

DIMENSIONS

LITERATURE
