11/2 Inch Polyprolene Bolted

AOD 400 PF PP

TYPICAL APPLICATIONS

Acids & Bases Plating Solutions, Waste Water, Paints, Inks, Solvents, Ceramic Slip and Glaze, Lubricants and Oils, Dairy, Meat & Poultry Processing, Personal Care

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS

SPECIFICATIONS

Suction & Discharge Size
1-1/2" X 1-1/2"
Standard Porting Location
End
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
13mm(1/2") x 19mm (3/4")
Maximum Flow Rate
458lpm(121gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
1.1l (0.28 gal)
Maximum Particle Size
6.4mm( 1/4 "))
Suction Dry:
5.4m(17.6')
Suction wet:
9.0m(29.5')

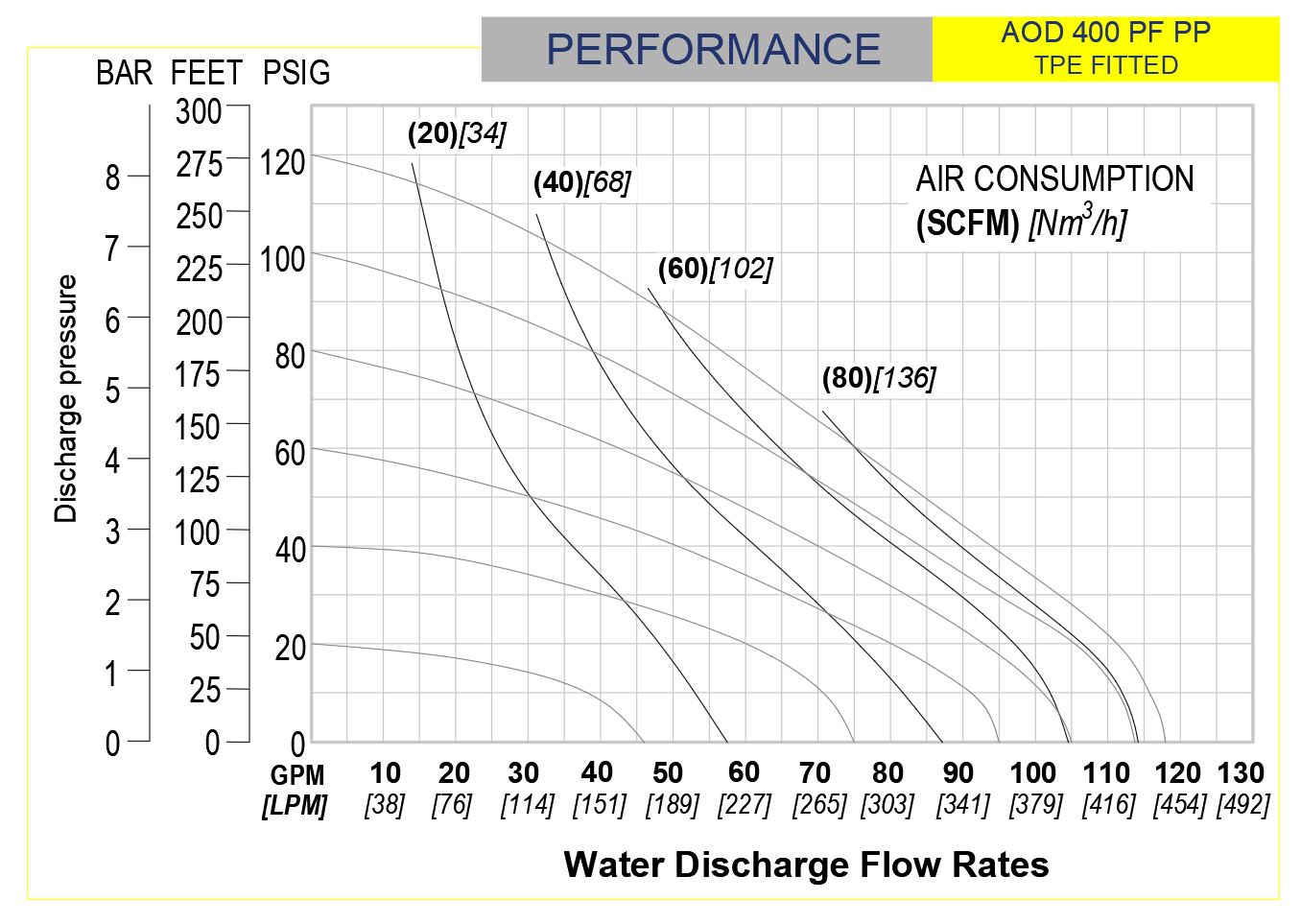

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene, PVDF
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.

Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
730mm(28.74")
Maximum Width
380mm(14.96")
Maximum Depth
530mm(20.87")
Weight: PVDF
31 Kg
Weight: Polypropylene
24 Kg

DIMENSIONS
