2 Inch Polyprolene Clamped

AOD 50 PF PP

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow Mark 1 Non-stalling Valve

SPECIFICATIONS

Suction & Discharge Size
2" X 2"
Standard Porting Location
Centre
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
13mm(1/2") x 19mm (3/4")
Maximum Flow Rate
620lpm(164gpm)
Maximum Air Supply Pressure
100 psi (6.9 bar)
Displacement Per Stroke
2.8l (0.75 gal)
Maximum Particle Size
6.4mm( 1/4 ")
Suction Dry:
6.6m(21.8')
Suction wet:
8.3m(27.2')

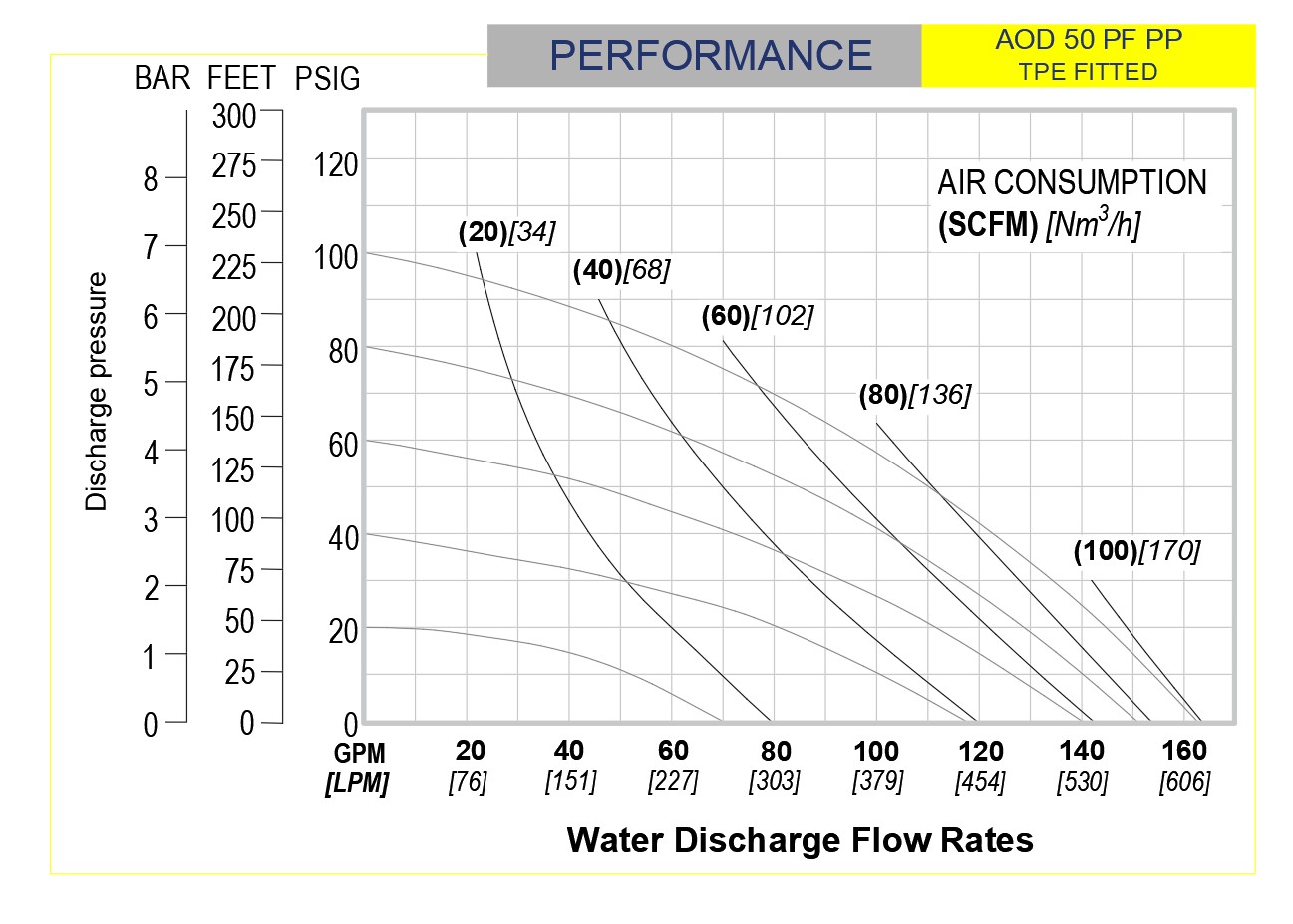

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
830mm(32.68")
Maximum Width
450mm(17.72")
Maximum Depth
540mm(21.26")
Weight: Polypropylene
37.3 Kg

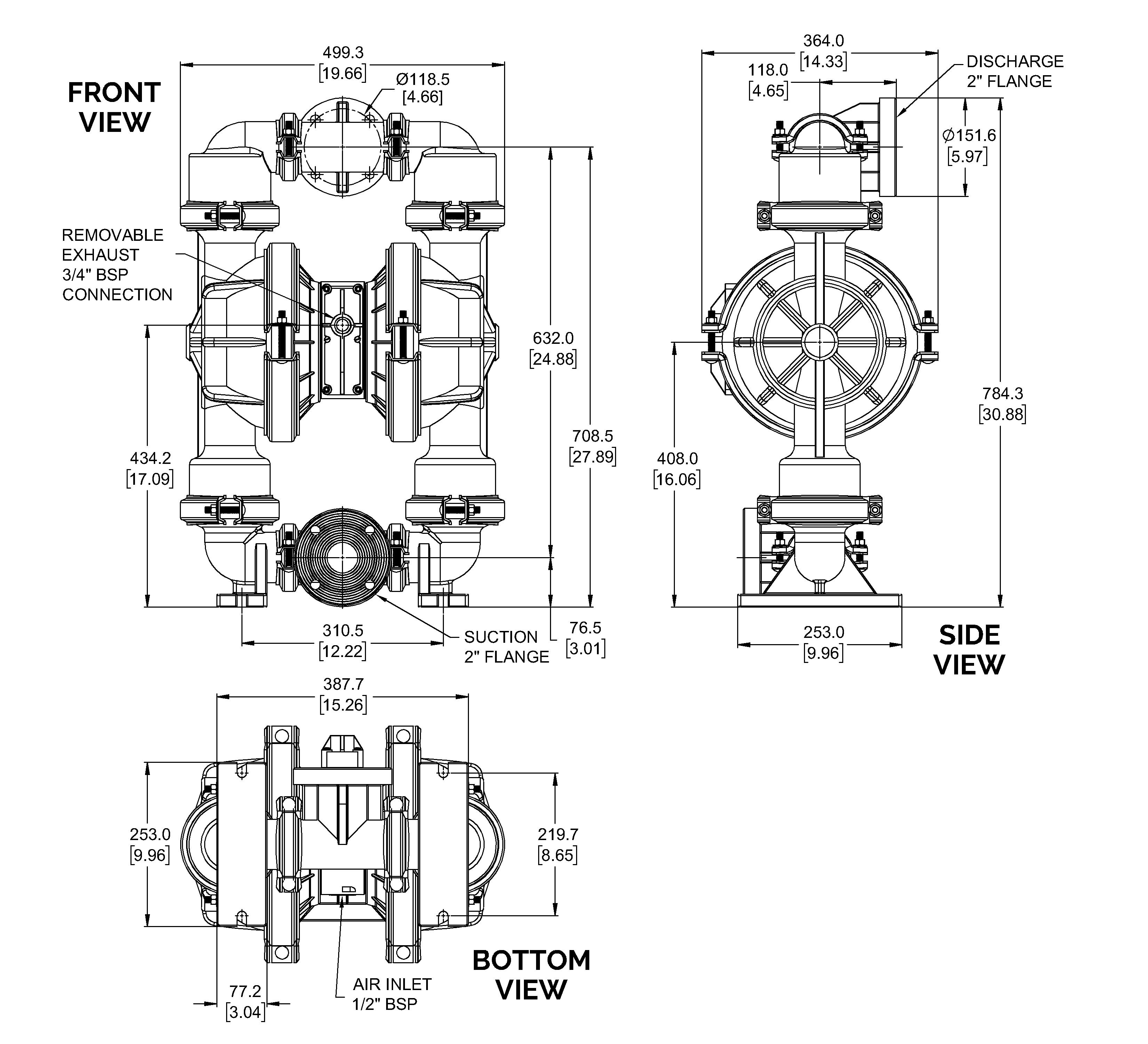

DIMENSIONS
