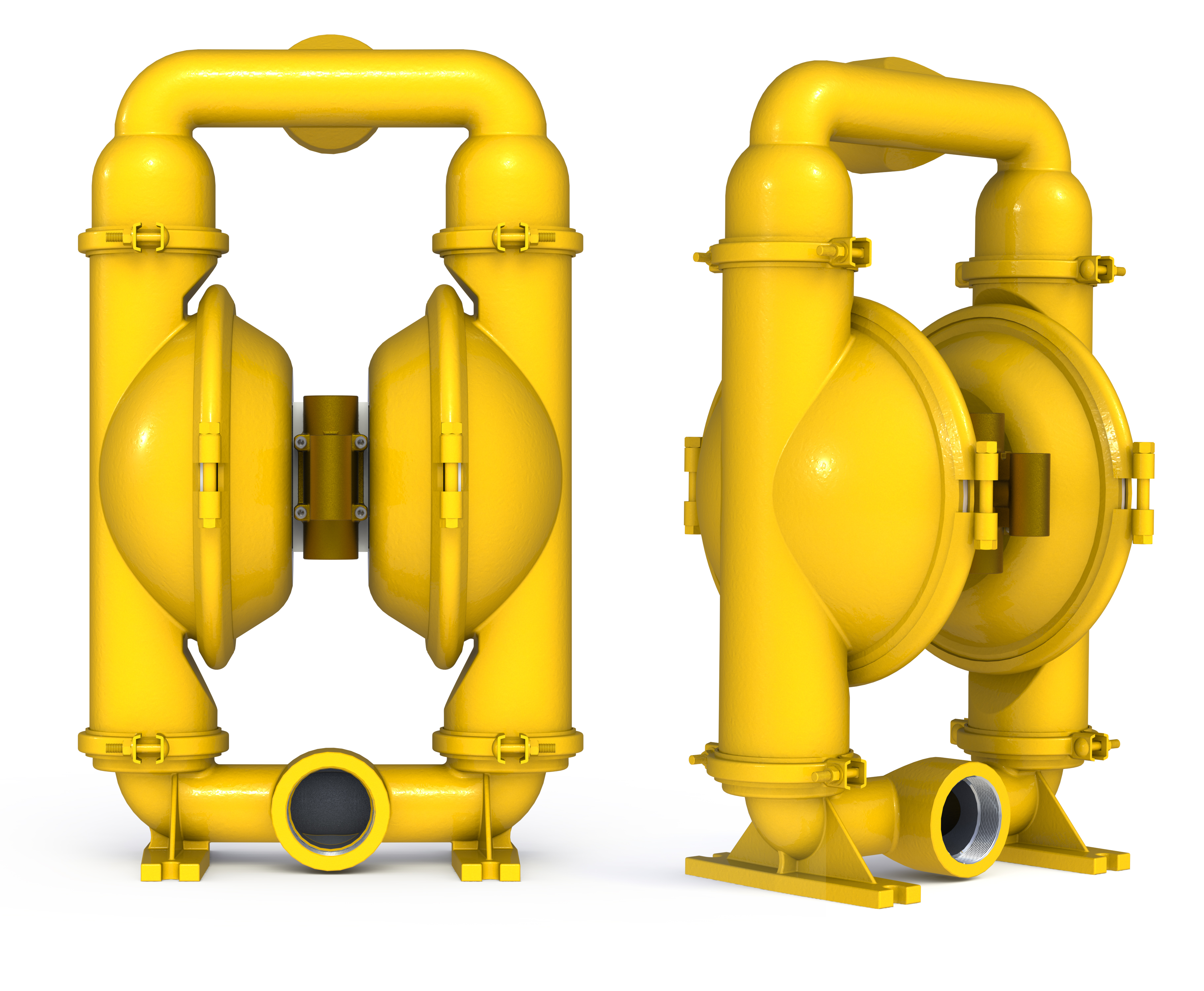

3 inch Ductile Iron clamped

AOD 80 M1 CI

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow Non-stalling Valve Mark 1

SPECIFICATIONS

Suction & Discharge Size
4" X 4"
Standard Porting Location
centre
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
19mm(3/4") X 25mm (1")
Maximum Flow Rate
1048lpm(277gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
4.5l (1.2 gal)
Maximum Particle Size
35mm(1-3/8")
Suction Dry:
4.1m(13.5')
Suction Wet:
8.6m(28.4')

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Ductile Iron
Diaphragm Materials
Buna-N,Neoprene
Air Valve
Brass
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
1030mm(40.55")
Maximum Width
690mm(27.17")
Maximum Depth
1050mm(41.34")
Weight: Polypropylene
295 kg

DIMENSIONS

LITERATURE

AOD 80 MI
