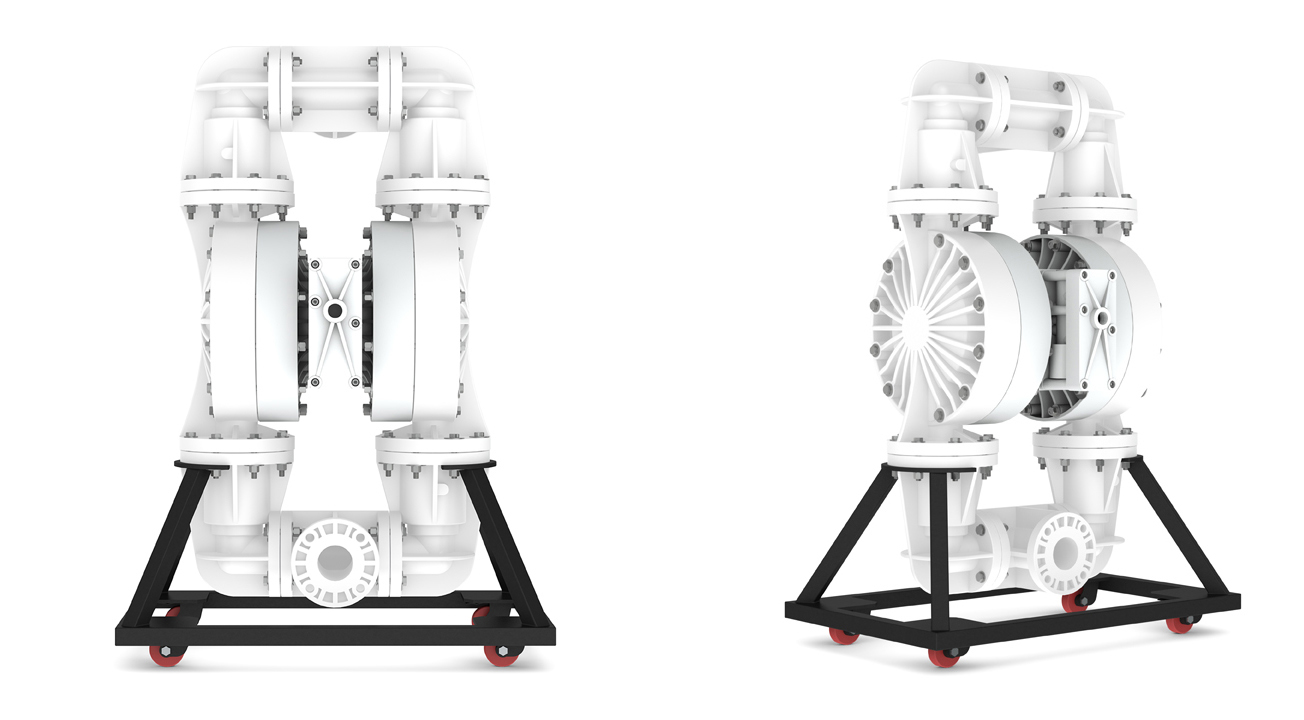

3 Inch PVDF Bolted

AOD 800 PF PVDF

TYPICAL APPLICATIONS

Acids & Bases Plating Solutions, Waste Water, Paints, Inks, Solvents, Ceramic Slip and Glaze, Lubricants and Oils, Dairy, Meat & Poultry Processing, Personal Care

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow

SPECIFICATIONS

Suction & Discharge Size
3" X 3"
Standard Porting Location
Centre
Connection Types
ANSI
Air Inlet & Air Exhaust Size:
13mm(1/2") X 25mm (1")
Maximum Flow Rate
1024lpm(271gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
5.4l (1.42 gal)
Maximum Particle Size
12.7mm(1/2")
Suction Dry:
5.3m(17.5')
Suction wet:
8.6m(28.4')

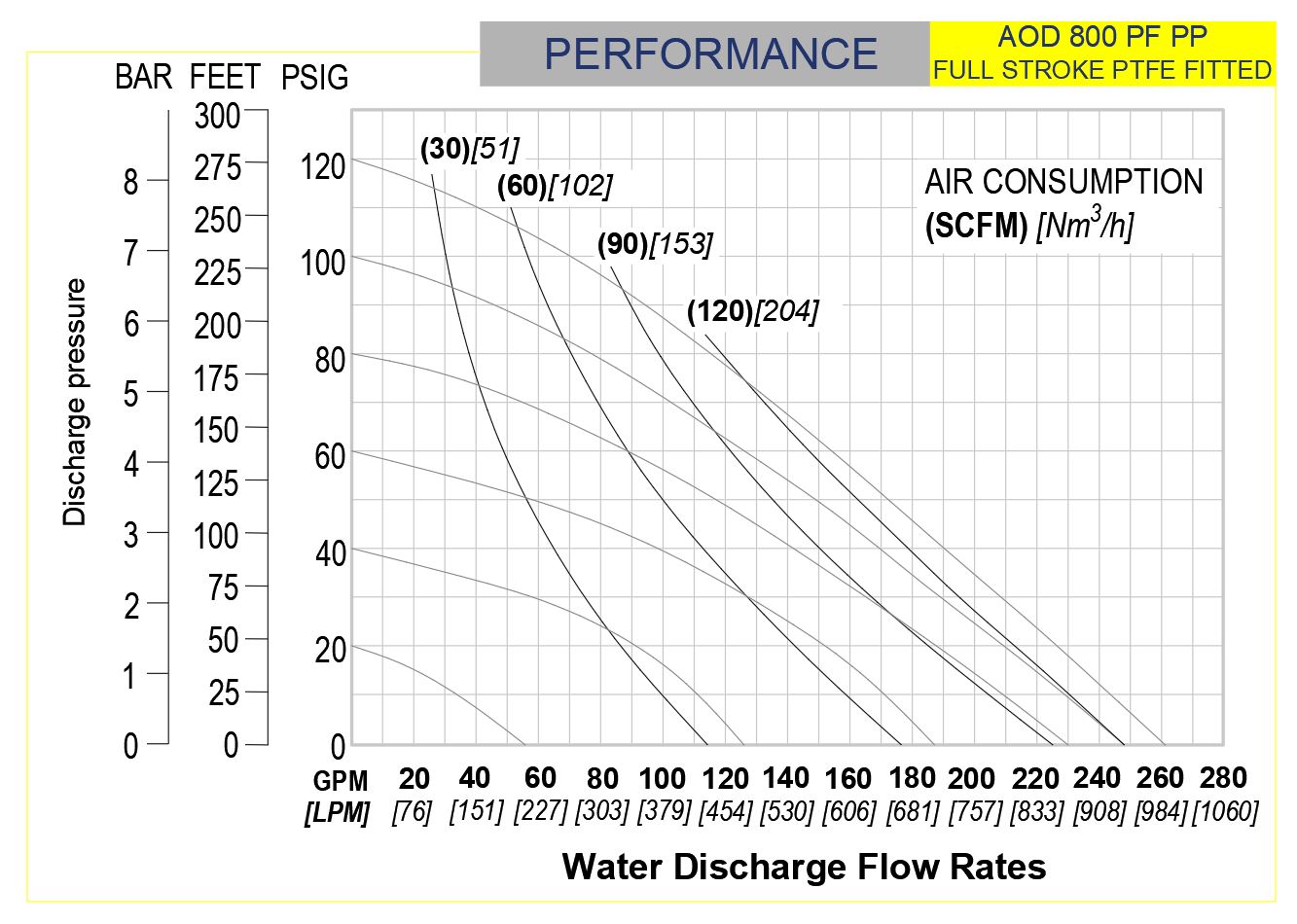

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Polypropylene
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.

Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
1510mm(59.45")
Maximum Width
1030mm(40.55")
Maximum Depth
670mm(26.38")
Weight: Polypropylene
162 Kg

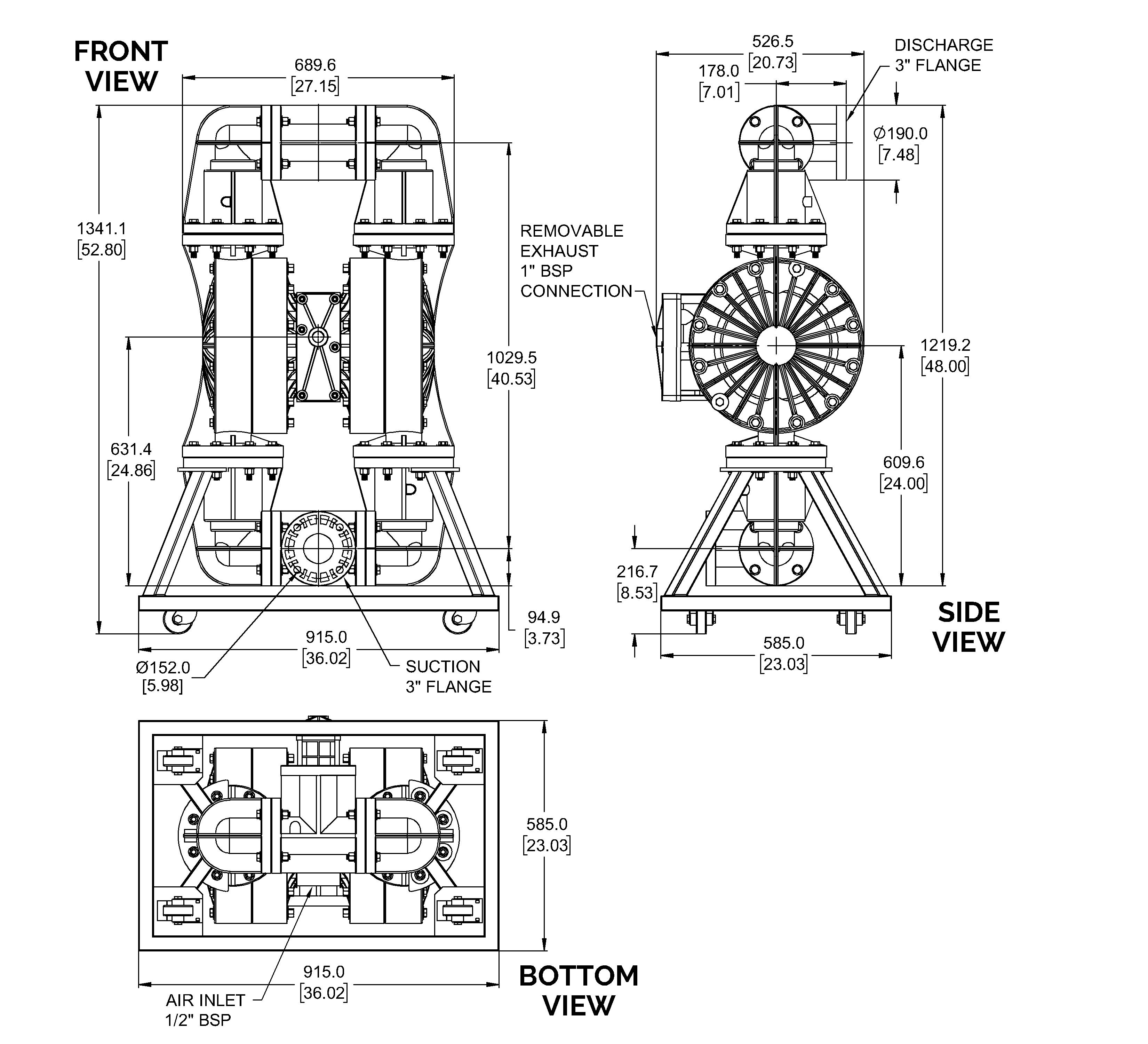

DIMENSIONS
