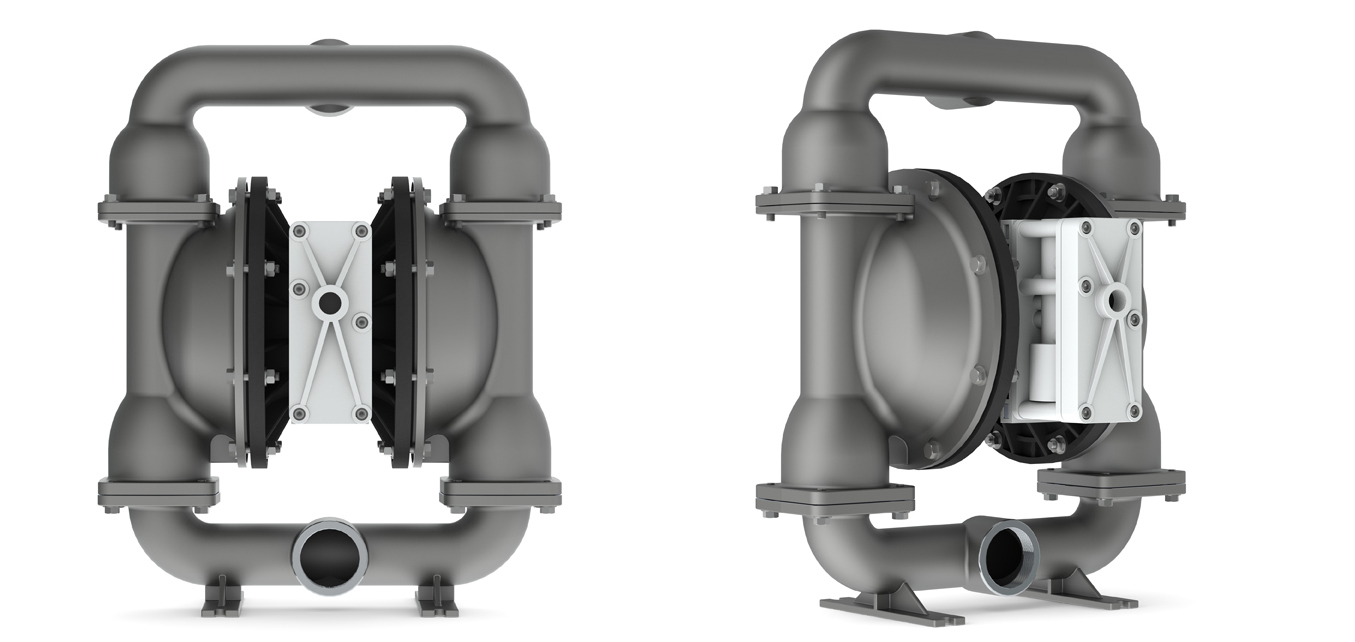

3 inch Stainless Steel 316 bolted

AOD 800 PF SS

TYPICAL INDUSTRIES

Mining, Paints and Coating, Ceramics, Pulp and Paper, Electroplating & Anodizing, Waste water, Marine, Chemical Manufacturing & Distribution, Oil & Gas, Food & Beverage, OEM'S

AIR VALVE ASSEMBLY OPTIONS
Power Flow

SPECIFICATIONS

Suction & Discharge Size
3" X 3"
Standard Porting Location
centre
Connection Types
BSP / NPT
Air Inlet & Air Exhaust Size:
13mm(1/2") X 25mm (1")
Maximum Flow Rate
1026lpm(271gpm)
Maximum Air Supply Pressure
120 psi (8.3 bar)
Displacement Per Stroke
5.0 l (1.32 gal)
Maximum Particle Size
12.7mm(1/2")
Suction Dry:
6.0m(19.7')
Suction Wet:
8.6m(28.4')

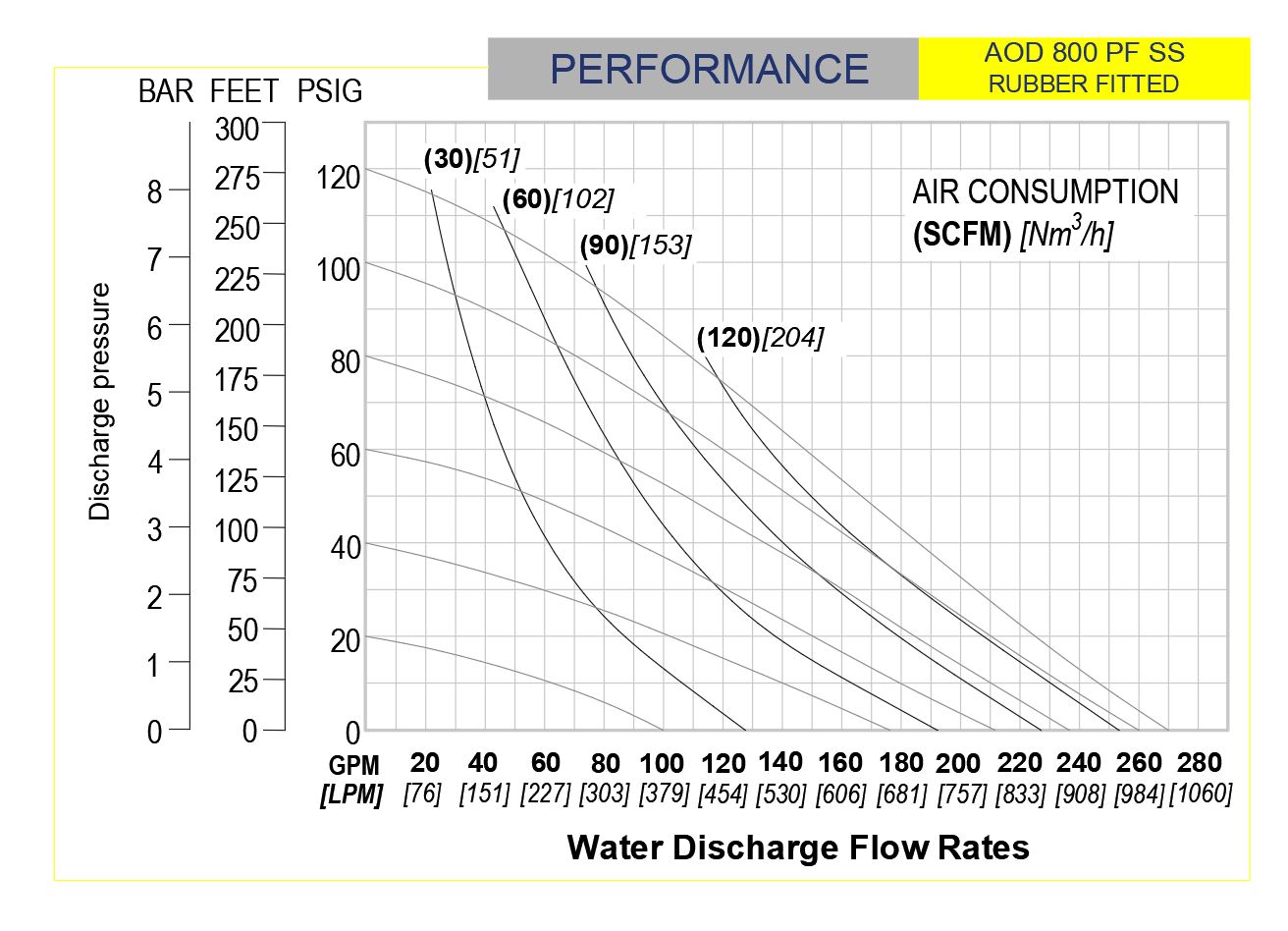

PERFORMANCE CHART

Note: Full Stroke diaphragm allows performance to be equal for all elastormers.

CONSTRUCTION

Wetted Materials
Stainless Steel SS316
Diaphragm Materials
Buna-N,Neoprene, Santoprene, Hytrel, PTFE, Polyurethane.
Air Valve
Polypropylene
Ball Materials
PTFE. Neoprene, 316SS.
Seat Materials
Polypropylene
O-ring Materials
Neoprene, PTFE, EPDM

Santoprene™ is a registered tradename of Exxon Mobile Corp.
Hytrel® is a registered tradename of dupont™

SHIPPING

Maximum Height
770mm(30.31")
Maximum Width
830mm(32.68")
Maximum Depth
1360mm(53.54")
Weight: Stainless Steel 316
125 kg

DIMENSIONS

LITERATURE

AOD 800 PF STT
AOD 800 PFF STT
